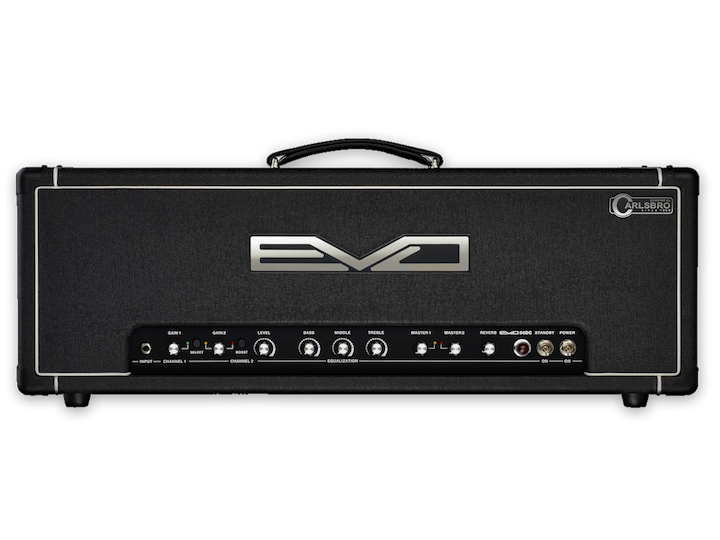

EVO 50DC

All valve 50 watt twin channel amp head, switchable between two channels and two master sections. The valve compliment of 4 x 12AX7 and 2 x EL34’s gives you 50 watts of incredible power at 8 or 16 ohms. The amp has a host of feature benefits including : 50W Pentode/25W Triode power output switching, 3 band EQ using silvered mica capacitors, ‘sleep mode’ automatic muting with no input present, FX Loop with Series/Parallel switch, Individual Control Spring Reverb, mains on/off and standby switches. Jack outputs are 2 x 8ohm, 2 x 16ohm and 1 x 16ohm allowing a choice of cabinets. Tough plywood construction, a durable covering and metal corners make these cabinets ideal for a life on the road.

product
Features

  • Modern sounding all valve 50 watt amplifier head
  • 4 x 12AX7 Preamp; 2 x EL34 Power Output
  • Twin channel
  • Pentode/triode function 50/25 watts
  • Two footswitchable master volumes
  • Footswitchable clean, overdrive, boost and effects loop
  • Sonically matched 4 x 12 cabinets
  • Durable road-ready tolex finish

product
Specification

Specification

Technology: All Valve (4 x 12AX7 Preamp, 2 x EL34 Power Output)
Channels: Two (Clean and Overdrive) with switchable Boost
Power: 50 Watt Pentode/ 25 Watt Triode
Inputs: 6.3mm Guitar In, Footswitch
Outputs: 2 x 8ohm; 2 x 16ohm, 1 x 16ohm
Controls: Clean Gain1, Overdrive Gain2, Overdrive Level, Master1, Master2
EQ: Bass/Middle/Treble
Effects: Spring Reverb, FX Loop (Series/Parallel) that is switchable on/off
Speaker: n/a
Impedance: n/a
Weight: 20kg (44.09lbs)
Dimensions: [Width*Height*Depth]: 760mm*250mm*230mm
